Series AM-AT Ex 50-65-80 2-pole

Starting at €1,102.10

Choose Product

Explosion-proof design

SKU
Product Name
Connection
Amp
kW
Ltr./min
Free passage mm
Head
Power (hp)
Volt
Ltr./min max.
Head max
Price
B3.06.491
Dreno type AM 50/2/110 C. 225 - 1.1kW - 28.8m³/h - 230V
2"
6.1
1.1
480
19
13
1.5
230
480
13
€1,191.80
B3.06.492
Dreno type AT 50/2/110 C. 225 - 1.1kW - 28.8m³/h - 400V
2"
3
1.1
480
19
13
1.5
400
480
13
€1,102.10
B3.06.493
Dreno type AM 50/2/110 C. 226 - 1.5kW - 28.8m³/h - 230V
2"
9.6
1.5
480
24
18
2
230
480
18
€1,285.60
B3.06.494
Dreno type AT 50/2/110 C. 226 - 1.5kW - 28.8m³/h - 400V
2"
3.5
1.5
480
24
18
2
400
480
18
€1,191.80
B3.06.495
Dreno type AM 65/2/125 C. 236 - 1.5kW - 43.2m³/h - 230V
DN 65
11
1.5
720
40
15
2
230
720
15
€2,756.70
B3.06.496
Dreno type AT 65/2/125 C. 236 - 1.5kW - 43.2m³/h - 400V
DN 65
3.6
1.5
720
40
15
2
400
720
15
€1,976.30
B3.06.497
Dreno type AT 65/2/125 C. 237 - 2.2kW - 54m³/h - 400V
DN 65
5.3
2.2
900
40
21
3
400
900
21
€2,332.00
B3.06.498
Dreno type AT 65/2/152 C. 247 - 4kW - 68.4m³/h - 400V
DN 65
8.3
4
1140
45
22
5.5
400
1140
22
€4,306.20
B3.06.499
Dreno type AT 80/2/173 C. 257 - 7.5kW - 158.4m³/h - 400V
DN 80
14.5
7.5
2640
55
38
10
400
2640
38
€6,359.80

More information

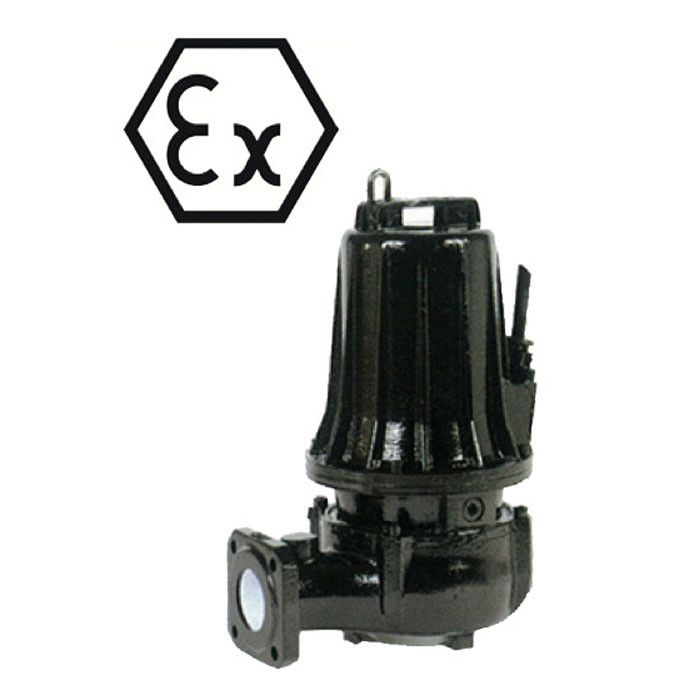

Applicable in both slightly polluted and heavily polluted water with increased head. These pumps can operate continuously if the motor is 2/3 submerged. These pumps are manufactured in cast iron (EN GJL200) with cast iron channel impeller. Motor class F with IP68, Clickson 130°C. The double mechanical gasket consists of a lip seal on the motor side and a SiC/SiC-viton shaft seal (silicon carbide) rotating in a separate oil bath on the impeller side. The pumps are supplied with standard 10 meters of cable H07RN-F ; 230 V types with an external capacitor box and plug (2-pole, 2850 tr/min) (CE 2049 Ex II 2 G Ex d c IIB T4 X). (from 36 up to max. 158 m3/h)
