Arven ARVEX - VX (vortex impeller)

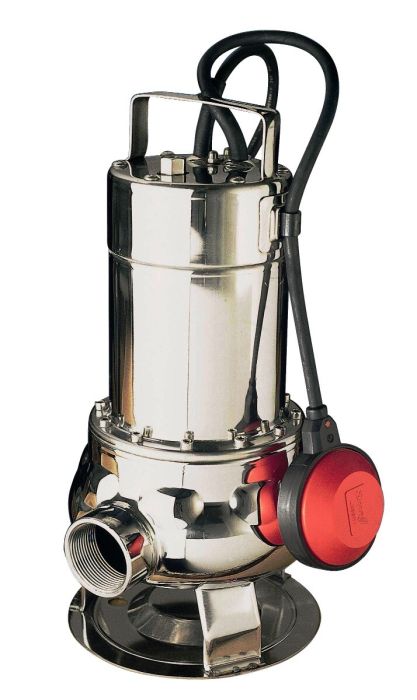

main product photo

Starting at €492.00

Choose Product
ARVEX VX series
Grouped product items
SKU Product Name Connection Amp kW Ltr./min Free passage mm Head Power (hp) Volt Ltr./min max. Head max Price
B3.04.641 Arven ARVEX 80 M 0,8HP 230V without float 1.1/2" 5.1 0.55 300 35 9.5 0.8 230 300 9.5
€492.00
B3.04.640 Arven ARVEX 80 MA 0,8HP 230V with float 1.1/2" 5.1 0.55 300 35 9.5 0.8 230 300 9.5
€523.00
B3.04.690 Arven ARVEX 80 MVA 0.8HP 230V with vertical float 1.1/2" 5.1 0.55 300 35 9.5 0.8 230 300 9.5
€574.00
B3.04.642 Arven ARVEX 80 T 0,8HP 380V without float 1.1/2" 2.1 0.55 300 35 9.5 0.8 400 300 9.5
€506.00
B3.04.644 Arven ARVEX 100 M 1HP 230V without float 2" 6.5 0.75 400 50 10.5 1 230 400 10.5
€527.00
B3.04.643 Arven ARVEX 100 MA 1 HP 230V with float 2" 6.5 0.75 400 50 10.5 1 230 400 10.5
€556.00
B3.04.691 Arven ARVEX 100 MVA 1HP 230V with vertical float 2" 6.5 0.75 400 50 10.5 1 230 400 10.5
€622.00
B3.04.645 Arven ARVEX 100 T 1HP 380V without float 2" 2.6 0.75 400 50 10.5 1 400 400 10.5
€566.00
B3.04.647 Arven ARVEX 150 M 1,5HP 230V without float 2" 10.4 1.1 425 50 13 1.5 230 425 13
€683.00
B3.04.646 Arven ARVEX 150 MA 1,5HP 230V with float 2" 10.4 1.1 425 50 13 1.5 230 425 13
€755.00
B3.04.692 Arven ARVEX 150 MVA 1,5HP 230V with vertical float 2" 10.4 1.1 425 50 13 1.5 230 425 13
€785.00
B3.04.648 Arven ARVEX 150 T 1,5HP 380V without float 2" 3.3 1.1 425 50 13 1.5 400 425 13
€697.00
B3.04.649 Arven ARVEX 200 MA 2HP 230V with float 2" 10.5 1.5 450 50 14 2 230 450 14
€731.00
B3.04.650 Arven ARVEX 200 M 2HP 230V without float 2" 10.5 1.5 450 50 14 2 230 450 14
€717.00
B3.04.651 Arven ARVEX 200 T 2HP 380V without float 2" 3.7 1.5 450 50 14 2 400 450 14
€731.00

More information

This professional submersible pump is very compact and completely in stainless steel 304. The submersible pump is applicable for pumping highly polluted water with coarse constituents up to 35 mm (ARVEX 80) or 50 mm (ARVEX 100-150-200), the double shaft seal is made of silicon carbide, rotating in an oil bath. Max. temp. 35°C. All types are standard with full impeller in stainless steel-304. Available with float and without float.

Arven ARVEX
