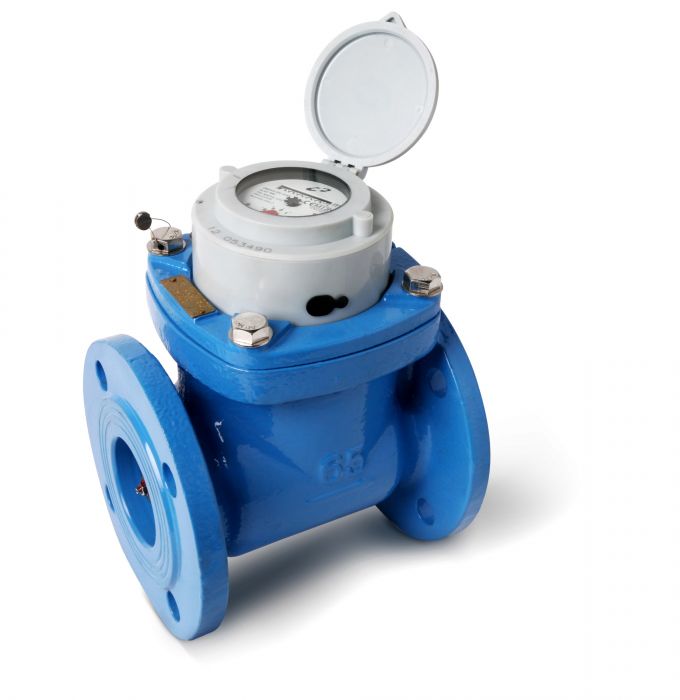

Watertech waterm Omega blue with Pulse Emitter Reed switch

main product photo

Starting at €2,856.70

Choose Product

with dry counting
Grouped product items
SKU Product Name Connection Installation dimensions mm Q1 ltr/h Q3 m³/h Pressure (bar) Max temperature °C Price
B2.04.195 Watermeter Omega WST 10" - DN 250 with Reed switch DN 250 450 7875 630 16 50
€2,856.70
B2.04.196 Watermeter Omega WST 12" - DN 300 with Reed switch DN 300 500 12500 1000 16 50
€4,820.60
B2.04.198 Watermeter Omega WST 16" - DN 400 with Reed switch DN 400 600 20000 1600 16 50
€8,748.50
B2.04.199 Watermeter Omega WST 20" - DN 500 with Reed switch DN 500 800 31250 2500 16 50
€6,399.00

More information

Omega Woltmann water meters with dry running counters for pure or slightly polluted water. Standard equipped with Pulse emitter reed switch. Without counter flanges. Maximum working pressure 16 bar and maximum temperature 60°C (inspections: EEC - AWWA - ISO 4064). Omega water meters come with C.E.E. standard certificate and test report. For an approved installation, the distance for the water meter should be min. 10 x the cross section of the pipe to be, distance behind the water meter min. 5 x the diameter of the male threaded E.g. pipe diam. 125mm: 1250 mm in front of meter 625 mm behind meter

Complete interiors for replacement are available upon request.
