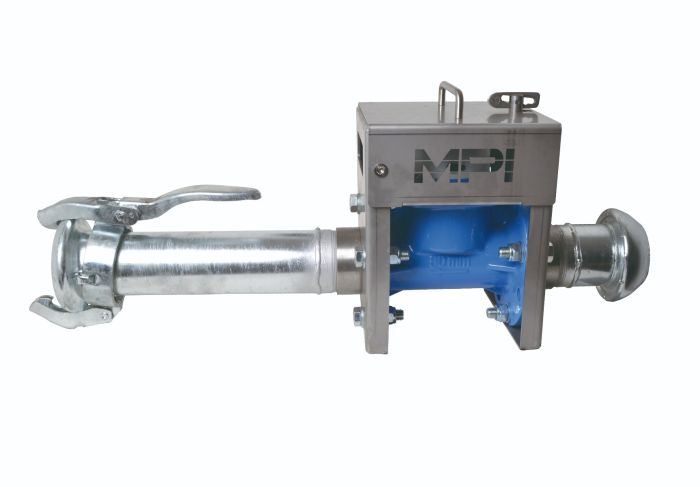

Water meters WMAP EVO R100 H - R100 V in SS cabinet with Perrot couplings

Starting at €0.00

Choose Product

with dry counting

Grouped product items
SKU Product Name Connection Installation dimensions mm Q1 ltr/h Q3 m³/h Pressure (bar) Max temperature °C Price
B2.04.311 Water meter WMAP EVO 2" - DN 50 in stainless steel cabinet Perrot coupling 50 2" 200 400 40 16 50
€0.00
B2.04.312 Water meter WMAP EVO 2.1/2" - DN 65 in stainless steel cabinet Perrot coupling 70 2.1/2" 200 630 63 16 50
€0.00
B2.04.313 Water meter WMAP EVO 3" - DN 80 in stainless steel cabinet Perrot coupling 89 3" 225 1000 100 16 30
€0.00
B2.04.314 Water meter WMAP EVO 4" - DN 100 in stainless steel cabinet Perrot coupling 108 4" 250 1600 160 16 50
€0.00
B2.04.315 Water meter WMAP EVO 6" - DN 125 in stainless steel cabinet Perrot coupling 159 6" 250 2500 250 16 50
€0.00
B2.04.321 Water meter WMAP EVO 6" - DN 150 in stainless steel cabinet Perrot coupling 159 6" 300 4000 400 16 50
€0.00

More information

WMAP EVO type Woltmann water meters with dry counting for pure or slightly polluted water. Supplied complete in stainless steel lockable cabinet with heavy duty brackets and Perrot couplings, other couplings on request. The water meter comes standard with pulse output, this allows the pulse transmitter to be retrofitted while maintaining both meter functionality and design. Without counter flanges. Maximum working pressure 16 bar and maximum temperature 60°C (inspections: EEC - AWWA - ISO 4064). Omega water meters come with C.E.E. standard certificate and test report. For an approved installation, the distance for the water meter should be min. 10 x the cross section of the pipe to be, distance behind the water meter min. 5 x the diameter of the male threaded E.g. pipe diam. 125mm: 1250 mm in front of the meter 625 mm behind the meter. From 10 pieces possible available with your own logo. Stainless steel cabinet with flange connection available.

Complete interiors for replacement are available upon request.
