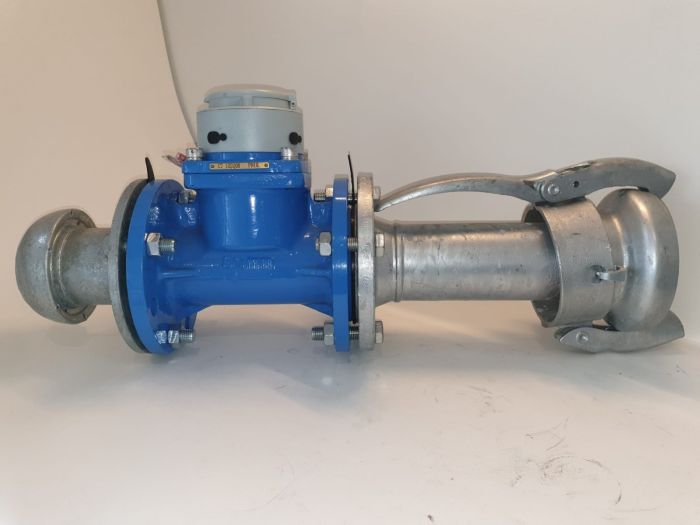

Water meter WTNW R40 type Delta with Perrot couplings

Starting at €403.70

Choose Product

with dry-running counter and large dirt passage

SKU
Product Name
Connection
Installation dimensions mm
Pressure (bar)
Max temperature °C
Price
B2.04.323
Water meter WTNW R40 DN-65/2.1/2" with Perrot coupling 70
DN 65
200
16
30
€403.70
B2.04.324
Water meter WTNW R40 DN-80/3" with Perrot coupling 89
DN 80
225
16
30
€468.10
B2.04.325
Water meter WTNW R40 DN-100/4" with Perrot coupling 108
DN 100
250
16
30
€561.20
B2.04.326
Water meter WTNW R40 DN-125/5" with Perrot coupling 133
DN 125
250
16
30
€617.60
B2.04.327
Water meter WTNW R40 DN-150/6" with Perrot coupling 159
DN 150
300
16
30
€805.00

More information

WTNW R40 H - R40 V water meters with dry running counter and measuring wheel at the top of the measuring pipe, for dewatering and foul water applications. The water meter comes standard with pulse output, this allows the pulse transmitter to be retrofitted while maintaining both meter functionality and design. Without counter flanges. Maximum working pressure 16 bar and maximum temperature 30°C (inspections: EEC - AWWA - ISO 4064). WTNW R40 water meters come with C.E.E. standard certificate and test report. Standard equipped with Perrot couplings, other couplings on request.

Complete inserts for replacement are available upon request.

Prices with coupling are unassembled and without bolts or nuts!
