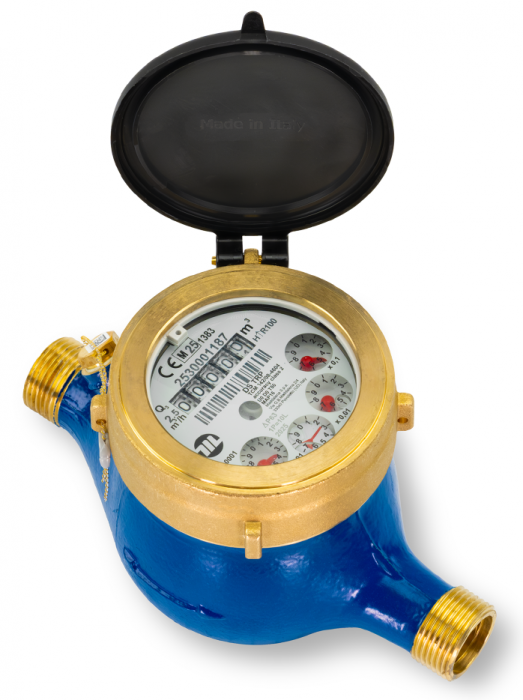

Maddalena watermeter DS TRP pre-equipped for optional pulse 1:1 - R160 H

main product photo

Starting at €92.60

Choose Product
For Horizontal mounting with counters facing up.
SKU
Product Name
Connection
Installation dimensions mm
Q1 ltr/h
Q3 m³/h
Pressure (bar)
Max temperature °C
Price
B2.04.202
Maddalena watermeter DS TRP 1/2" pre-equipped for optional pulse 1:1 - R160 H DN15
1/2"
170
15.63
2.5
16
50
€92.60
B2.04.208
Maddalena watermeter DS TRP 3/4" pre-equipped for optional pulse 1:1 - R160 H DN20
3/4"
190
25
4
16
50
€101.70
B2.04.218
Maddalena watermeter DS TRP 1" pre-equipped for optional pulse 1:1 - R160 H DN25
1"
260
39.38
6.3
16
50
€161.30
B2.04.228
Maddalena watermeter DS TRP 1.1/4" pre-equipped for optional pulse 1:1 - R160 H DN32
1.1/4"
260
62.5
10
16
50
€185.60
B2.04.238
Maddalena watermeter DS TRP 1.1/2" pre-equipped for optional pulse 1:1 - R160 H DN40
1.1/2"
300
100
16
16
50
€292.00
B2.04.258
Maddalena watermeter DS TRP 2" pre-equipped for optional pulse 1:1 - R160 H DN50
2"
300
156.25
25
16
50
€333.00

More information

Multi-Jet magnetic water meters with dry counting. Maximum working pressure 16 bar and maximum temperature 50°C. The water meters are prepared to work with a pulse counter 1 pulse per liter. The water meters are supplied with C.E.E. standard certificate and test report (electronic readout possible). For Horizontal mounting with counter facing upwards. The indicated connections and installation dimensions apply when using the water meter fittings.
