H2Q press control 230V with adjustable starting pressure

Starting at €84.20

Choose Product

Adjustable start pressure between 1.0 and 2.8 bar

Grouped product items
SKU Product Name Connection Ltr./min max. Max. Amp Max. kW Volt Pressure (bar) Price
A2.03.228 H2Q universal press control 10 amp. (max 2 hp 230V) with plug 1" 125 10 1.5 230 10
€84.20

More information

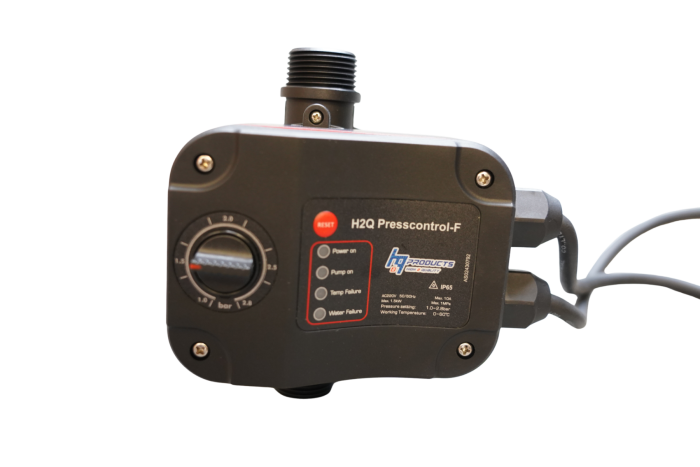

The H2Q pump control is a universal flow switch of the latest generation with a manual adjustable start pressure that fully automatically turns the pump on or off when the tap or valve is opened or closed. The start pressure is adjustable from 1.0 to 2.8 bar. The pump control protects the pump from running dry. Suitable for centrifugal pumps and pressure submersible pumps up to 2 HP (10 Amp.) Connection 1" Minimum capacity 15 L/h. Maximum capacity 7500 L/hr at max pressure 10 bar and 230V. Includes 1.5 meter cable and plug and 0.5 meter cable and plug to connect pump. Protection class IP 65.
