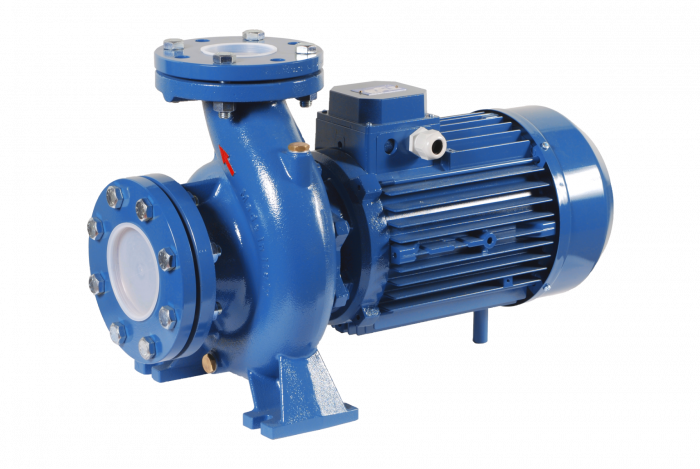

Osna NA80 normalised pump

Starting at €1,693.00

Choose Product
Availability Out of stock
Normalised short-coupled pump
SKU
Product Name
Ltr./min
Power (hp)
kW
Head
Volt
Suction/pressure connection
Price
A1.32.230
Osna NA80-160F/75 - 10hp - 400V
1100 - 2600
10
7,5
20.4 - 11.8
400
100 - 80
€1,693.00
A1.32.232
Osna NA80-160E/95 -12,5hp - 400V
1100 - 2800
12,5
9,5
23.5 - 13.1
400
100 - 80
€1,946.00
A1.32.234
Osna NA80-160D/110 - 15hp -400V
1100 - 3000
15
11
25.5 - 14
400
100 - 80
€2,175.00
A1.32.236
Osna NA80-160C/150 - 20hp - 400V
1100 - 3200
20
15
29.5 - 16
400
100 - 80
€3,062.00
A1.32.238
Osna NA80-160B/185 - 25hp - 400V
1100 - 3400
25
18,5
34 - 20
400
100 - 80
€3,176.00
A1.32.240
Osna NA80-160A/220 - 30hp - 400V
1100 - 3600
30
22
38.5 - 20
400
100 - 80
€3,434.00
A1.32.242
Osna NA80-200B/300 - 40hp - 400V
1400 - 3800
40
30
50.8 - 38.6
400
100 - 80
€8,745.00
A1.32.244
Osna NA80-200A/370 - 50hp - 400V
1400 - 4000
50
37
59.6 - 46.1
400
100 - 80
€9,487.00

More information

Radial impeller pumps with axial intake and upward-facing radial delivery. The main feature of these pumps is that they are capable of generating medium-high flow rates and high discharge heads. These single-impeller pumps are particularly suited for industrial, agricultural and domestic applications.
