Level detection system

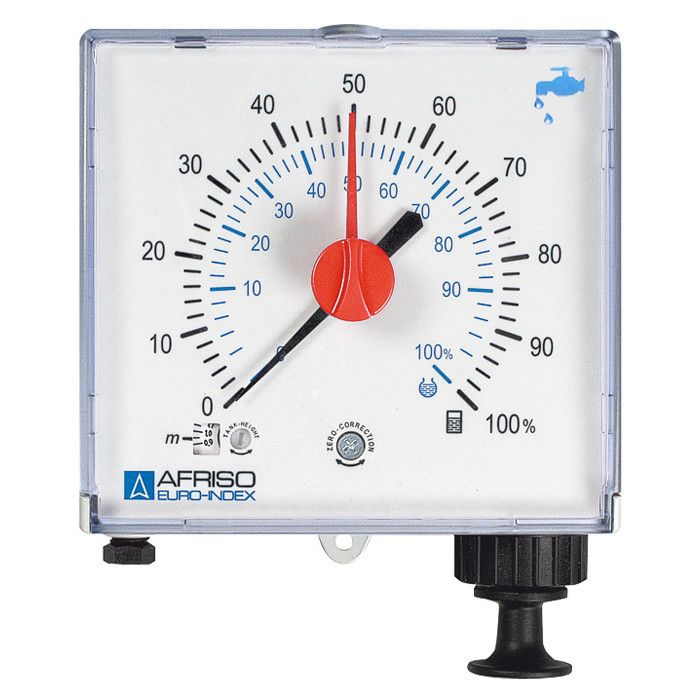

Universal pneumatic contents gauge with semi-permanent indication for distance measurement up to 50 m.

Measuring range: 900 to 3,000 mm H or Ø
Dual scale: rectangular and cylindrical in vol.%
Accuracy: 3% of the scale end value
Red indicator needle for indication of consumption Plastic housing
Measuring system: box spring, with overpressure protection
Zero point control: with screw
Measuring line: copper pipe or polyethylene pipe with outside diameter 6 mm
Max. distance to tank: 50 m
