EEB pipe compensator with threaded connection type FLT - EPDM - PN10

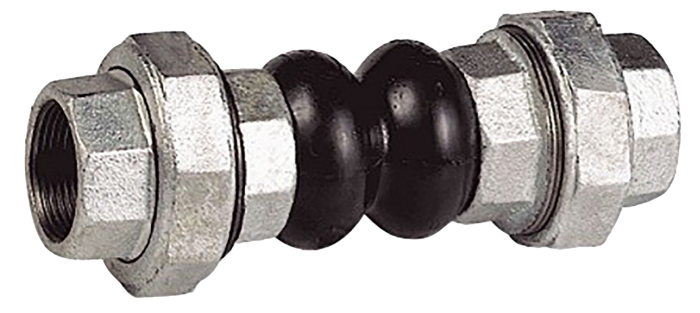

main product photo

Starting at €30.33

Choose Product

EPDM pipe compensator with FLT F/F connection

Download Technical sheet
Grouped product items
SKU Product Name Weight Length Pipe diameter Diameter Inch axial_displacement_1 Axial displacement 2 Deflection angle Price
B5.02.334 EEB pipe compensator with threaded connection type FLT - EPDM - 1" - PN10 1 200 DN25 1" 22 22 15°
€30.33
B5.02.336 EEB pipe compensator with threaded connection type FLT - EPDM - 1.1/4" - PN10 1,3 200 DN32 1.1/4" 22 22 15°
€35.70
B5.02.338 EEB pipe compensator with threaded connection type FLT - EPDM - 1.1/2" - PN10 1,9 200 DN40 1.1/2" 22 22 15°
€45.96
B5.02.340 EEB pipe compensator with threaded connection type FLT - EPDM - 2" - PN10 2,6 200 DN50 2" 22 22 15°
€57.35

More information

Pipe compensators serve to absorb noise, vibration and expansion. This type is of EPDM and thus suitable for water and distribution facilities at temperatures between -10°C and +95°C./br/ The connectors are of galvanized wrought iron (FLT)./br/ Braced with nylon fabric.
