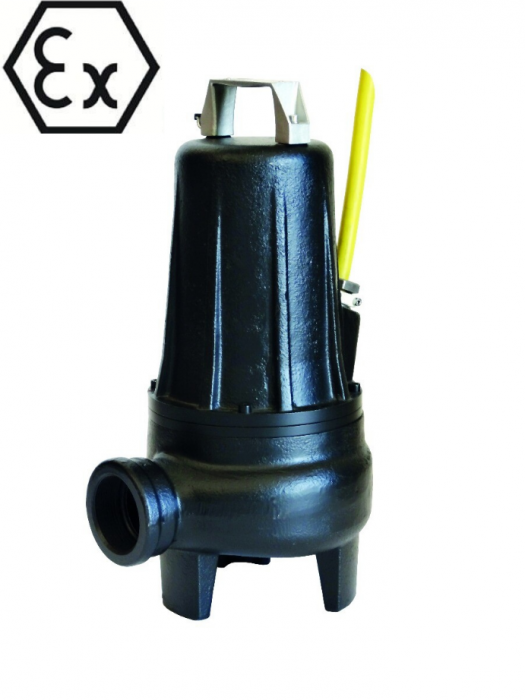

Dreno Compatta Pro Ex 2-pole

Starting at €517.00

Choose Product

Explosion-proof design

Grouped product items
SKU Product Name Connection Amp kW Ltr./min Free passage mm Head Power (hp) Volt Ltr./min max. Head max Price
B3.06.261 Dreno Compatta Pro Ex 50-2/060M 2" 4.8 0.6 420 50 7.8 0.8 230 420 7.8
€1,017.00
B3.06.263 Dreno Compatta Pro Ex 50-2/080M 2" 5.8 0.8 480 50 10 1 230 480 10
€1,065.00
B3.06.266 Dreno Compatta Pro Ex 50-2/110T 2" 2.9 1.1 480 50 12 1.5 400 480 12
€1,107.00
B3.06.268 Dreno Compatta Pro Ex 50-2/150T 2" 3.7 1.5 600 50 14 2 400 600 14
€1,210.00

More information

Applicable in both pure and slightly polluted water. These pumps can operate continuously if the motor is 2/3 submerged. These pumps are manufactured from cast iron with a cast iron Vortex impeller. Motor class F with IP68, winding protection Click-son 130°C. The mechanical gasket consists of SiC/SiC viton (silicon carbide). The pumps come standard with 10 meters of cable H07RN-F, 230V types with a capacitor box and plug. The free throughput of the pump is 50mm. Atex explosion-proof design (CE 2049 Ex II 2 G Ex d c IIB T4 X)
