Caprari free shaft end MEC-A series

main product photo

Starting at €962.00

Choose Product

Free shaft end
Grouped product items
SKU Product Name kW Ltr./min Head R.P.M. Suction/pressure connection Price
C4.09.500 Caprari MEC-A1/40A 28.8m³/h 2.9 120 - 480 33 - 17 2900 DN50 - DN40
€962.00
C4.09.502 Caprari MEC-A2/40A 43.2m³/h 2.9 120 - 720 54 - 34 2900 DN50 - DN40
€1,004.00
C4.09.504 Caprari MEC-A1/50A 72m³/h 6 360 - 1200 34 - 21 2900 DN65 - DN50
€984.00
C4.09.506 Caprari MEC-A2/50A 72m³/h 10 360 - 1200 54 - 30 2900 DN65 - DN50
€1,076.00
C4.09.508 Caprari MEC-A3/50A 72m³/h 20 360 - 1200 89 - 58 2900 DN65 - DN50
€1,335.00
C4.09.510 Caprari MEC-A1/65A 94m³/h 8.8 600 - 1560 33 - 21 2900 DN80 - DN65
€1,066.00
C4.09.512 Caprari MEC-A2/65A 94m³/h 16.5 600 - 1560 56 - 48.5 2900 DN80 - DN65
€1,273.00
C4.09.514 Caprari MEC-A3/65A 108m³/h 30 600 - 1800 91 - 74 2900 DN80 - DN65
€1,407.00
C4.09.516 Caprari MEC-A1/80A 162m³/h 11.4 960 - 2700 31.5 - 18.5 2900 DN100 - DN80
€1,097.00
C4.09.518 Caprari MEC-A2/80A 180m³/h 28.5 960 - 3000 58 - 44 2900 DN100 - DN80
€1,355.00
C4.09.520 Caprari MEC-A3/80A 198m³/h 53 960 - 3300 95 - 73 2900 DN100 - DN80
€1,821.00
C4.09.522 Caprari MEC-A4/80A 180m³/h 54 840 - 3000 101 - 78 2400 DN100 - DN80
€2,203.00
C4.09.526 Caprari MEC-A1/100A 216m³/h 12.8 2100 - 3600 26 - 16.5 2900 DN125 - DN100
€1,397.00
C4.09.528 Caprari MEC-A2/100A 252m³/h 36.5 2100 - 4200 53 - 39 2900 DN125 - DN100
€1,670.00
C4.09.530 Caprari MEC-A3/100A 324m³/h 74.5 2100 - 5400 91 - 66 2900 DN125 - DN100
€2,059.00
C4.09.532 Caprari MEC-A4/100A 216m³/h 35 1200 - 3600 54 - 45 1750 DN125 - DN100
€2,607.00
C4.09.536 Caprari MEC-A5/100A 252m³/h 97 1200 - 4200 115 - 97 2000 DN125 - DN100
€3,961.00
C4.09.540 Caprari MEC-A1/125A 414m³/h 52 3600 - 6900 48 - 28.5 2900 DN150 - DN125
€2,238.00
C4.09.542 Caprari MEC-A2/125A 432m³/h 67.5 3300 - 7200 61 - 40 2400 DN150 - DN125
€2,483.00
C4.09.548 Caprari MEC-A3/125A 432m³/h 104 2400 - 7200 86 - 64 2200 DN150 - DN125
€3,672.00
C4.09.552 Caprari MEC-A4/125A 360m³/h 91 1800 - 6000 89 - 68 1750 DN150 - DN125
€4,354.00

More information

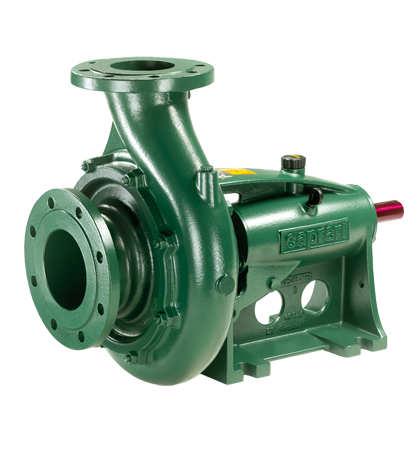

Horizontal single-impeller centrifugal pump, The hydraulic components are made of cast iron and a steel shaft. Standard with stuffing box gasket. Can be paired with diesel motors as well as 2- and 4-pole electric motors.

The MEC-A is a versatile pump used in flush drilling, industrial, sprinkler and firefighting applications.

Pump data is shown with the pump speed listed.
