4" WPS 7 well pump with WPS motor

Skip to the beginning of the images gallery

Starting at €797.00

nominal flow of 7m³/h

Grouped product items

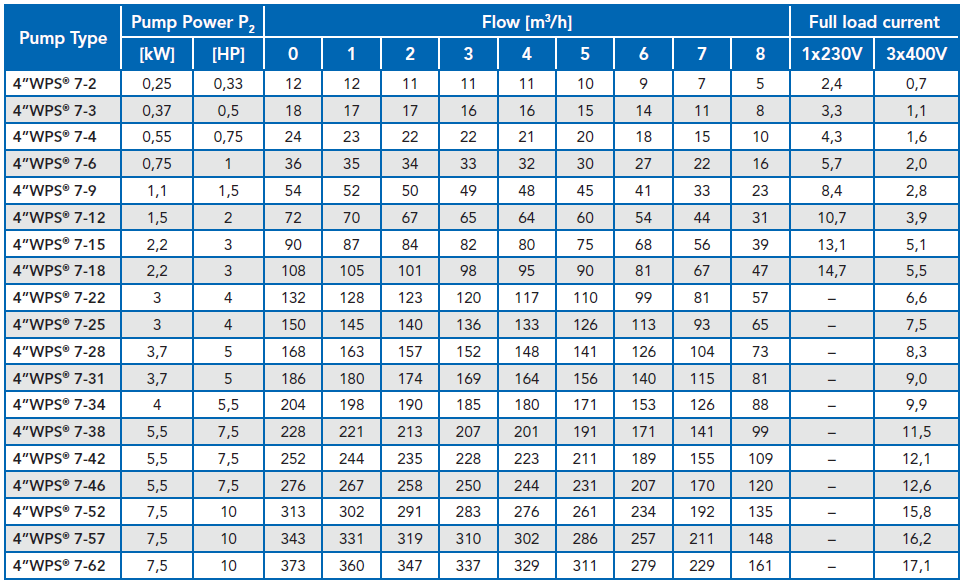

SKU	Product Name	Connection	kW	Ltr./min	Head	Power (hp)	Volt	Price
B1.27.358	4" WPS 7-2 - 0,37 kW - 1 x 230V	2"	0.37	0 - 133	12 - 5	0.5	230	€797.00
B1.27.480	4" WPS 7-2 - 0,37 kW - 3 x 400V	2"	0.37	0 - 133	12 - 5	0.5	400	€807.00
B1.27.360	4" WPS 7-3 - 0,37 kW - 1 x 230V	2"	0.37	0 - 133	18 - 8	0.5	230	€812.00
B1.27.482	4" WPS 7-3 - 0,37 kW - 3 x 400V	2"	0.37	0 - 133	18 - 8	0.5	400	€823.00
B1.27.362	4" WPS 7-4 - 0,55 kW - 1 x 230V	2"	0.55	0 - 133	24 - 10	0.75	230	€852.00
B1.27.484	4" WPS 7-4 - 0,55 kW - 3 x 400V	2"	0.55	0 - 133	24 - 10	0.75	400	€862.00
B1.27.364	4" WPS 7-6 - 0,75 kW - 1 x 230V	2"	0.75	0 - 133	36 - 16	1	230	€915.00
B1.27.486	4" WPS 7-6 - 0,75 kW - 3 x 400V	2"	0.75	0 - 133	36 - 16	1	400	€922.00
B1.27.366	4" WPS 7-9 - 1,1 kW - 1 x 230V	2"	1.1	0 - 133	54 - 23	1.5	230	€1,034.00
B1.27.488	4" WPS 7-9 - 1,1 kW - 3 x 400V	2"	1.1	0 - 133	54 - 23	1.5	400	€1,037.00
B1.27.368	4" WPS 7-12 - 1,5 kW - 1 x 230V	2"	1.5	0 - 133	72 - 31	2	230	€1,244.00
B1.27.490	4" WPS 7-12 - 1,5 kW - 3 x 400V	2"	1.5	0 - 133	72 - 31	2	400	€1,210.00
B1.27.370	4" WPS 7-15 - 2,2 kW - 1 x 230V	2"	2.2	0 - 133	90 - 39	3	230	€1,553.00
B1.27.492	4" WPS 7-15 - 2,2 kW - 3 x 400V	2"	2.2	0 - 133	90 - 39	3	400	€1,499.00
B1.27.372	4" WPS 7-18 - 2,2 kW - 1 x 230V	2"	2.2	0 - 133	108 - 47	3	230	€1,645.00
B1.27.494	4" WPS 7-18 - 2,2 kW - 3 x 400V	2"	2.2	0 - 133	108 - 47	3	400	€1,591.00
B1.27.496	4" WPS 7-22 - 3 kW - 3 x 400V	2"	3	0 - 133	132 - 57	4	400	€2,151.00
B1.27.498	4" WPS 7-25 - 3 kW - 3 x 400V	2"	3	0 - 133	150 - 65	4	400	€2,246.00
B1.27.500	4" WPS 7-28 - 4 kW - 3 x 400V	2"	4	0 - 133	168 - 73	5.5	400	€2,469.00
B1.27.502	4" WPS 7-31 - 4 kW - 3 x 400V	2"	4	0 - 133	186 - 81	5.5	400	€2,568.00
B1.27.504	4" WPS 7-34 - 4 kW - 3 x 400V	2"	4	0 - 133	204 - 88	5.5	400	€2,635.00
B1.27.506	4" WPS 7-38 - 5,5 kW - 3 x 400V	2"	5.5	0 - 133	228 - 99	7.5	400	€3,210.00
B1.27.508	4" WPS 7-42 - 5,5 kW - 3 x 400V	2"	5.5	0 - 133	252 - 109	7.5	400	€3,863.00
B1.27.510	4" WPS 7-46 - 5,5 kW - 3 x 400V	2"	5.5	0 - 133	276 - 120	7.5	400	€4,050.00
B1.27.512	4" WPS 7-52 - 7,5 kW - 3 x 400V	2"	7.5	0 - 133	313 - 135	10	400	€4,395.00
B1.27.514	4" WPS 7-57 - 7,5 kW - 3 x 400V	2"	7.5	0 - 133	343 - 148	10	400	€4,581.00
B1.27.516	4" WPS 7-62 - 7,5 kW - 3 x 400V	2"	7.5	0 - 133	373 - 161	10	400	€4,773.00

More information

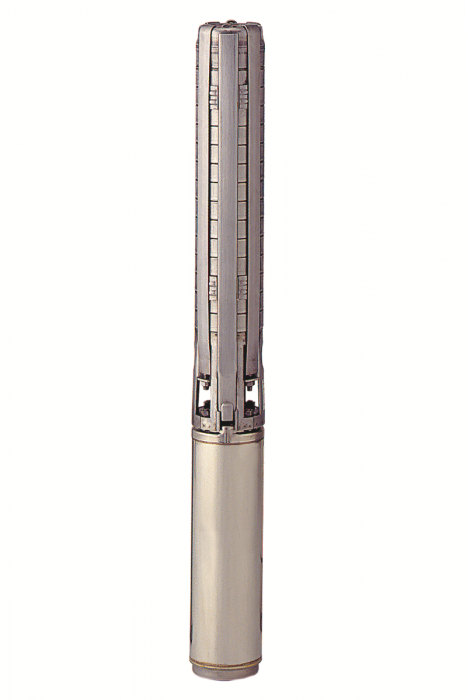

Well pump part assembled with Well Pumps motor. The well pump part and impellers are made entirely of stainless steel AISI304. The pump can pump up to a maximum of 150 g/m³. WPS motors are water-filled and suitable for use with frequency control. Supplied with 1.75m cable as standard. Monophase motors come with capacitor box. Optionally, the pump can be supplied in stainless steel AISI 316. Pump equipped with Franklin motor on request.
