Well pumps
STAINLESS STEEL-AISI-304

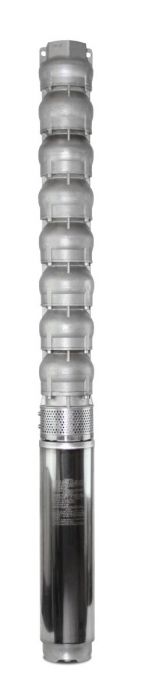

4" WPS 20 well pump with WPS motor

main product photo

Starting at €1,157.00

Choose Product

nominal flow of 20m³/h
Grouped product items

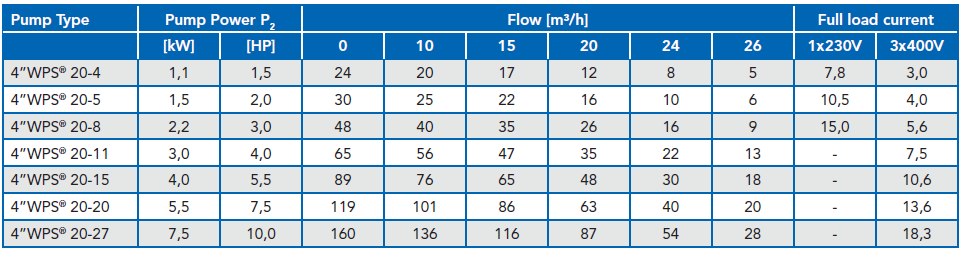

SKU Product Name Connection kW Ltr./min Head Power (hp) Volt Price
B1.27.382 4" WPS 20-4 - 1,1kW - 1 x 230V 2" 1.1 0 - 433 24 - 5 1.5 230
€1,157.00
B1.27.542 4" WPS 20-4 - 1,1kW - 3 x 400V 2" 1.1 0 - 433 24 - 5 1.5 400
€1,161.00
B1.27.384 4" WPS 20-5 - 1,5kW - 1 x 230V 2" 1.5 0 - 433 30 - 6 2 230
€1,447.00
B1.27.544 4" WPS 20-5 - 1,5kW - 3 x 400V 2" 1.5 0 - 433 30 - 6 2 400
€1,413.00
B1.27.386 4" WPS 20-8 - 2,2kW - 1 x 230V 2" 2.2 0 - 433 48 - 9 3 230
€1,988.00
B1.27.546 4" WPS 20-8 - 2,2kW - 3 x 400V 2" 2.2 0 - 433 48 - 9 3 400
€1,933.00
B1.27.548 4" WPS 20-11 - 3kW - 3 x 400V 2" 3 0 - 433 65 - 13 4 400
€2,678.00
B1.27.550 4" WPS 20-15 - 4kW - 3 x 400V 2" 4 0 - 433 89 - 18 5.5 400
€3,348.00
B1.27.552 4" WPS 20-20 - 5,5kW - 3 x 400V 2" 5.5 0 - 433 119 - 20 7.5 400
€4,210.00
B1.27.554 4" WPS 20-27 - 7,5kW - 3 x 400V 2" 7.5 0 - 433 160 - 28 10 400
€5,325.00

More information

Well pump part assembled with Well Pumps motor. The well pump part and impellers are made entirely of stainless steel AISI304. The pump can pump up to a maximum of 150 g/m³. WPS motors are water-filled and suitable for use with frequency control. Supplied with 1.75m cable as standard. Monophase motors come with capacitor box. Optionally, the pump can be supplied in stainless steel AISI 316. Pump equipped with Franklin motor on request

4 WPS 4 well pump with WPS motor
