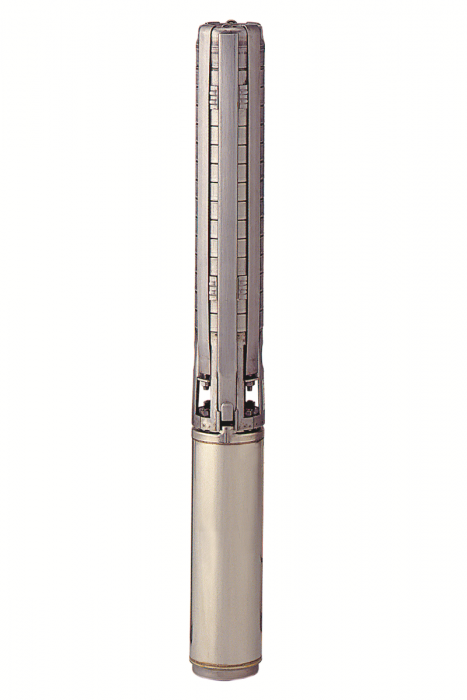

4" WPS 1.5 well pump with WPS motor

Skip to the beginning of the images gallery

Starting at €825.00

nominal flow of 1.5m³/h

Grouped product items

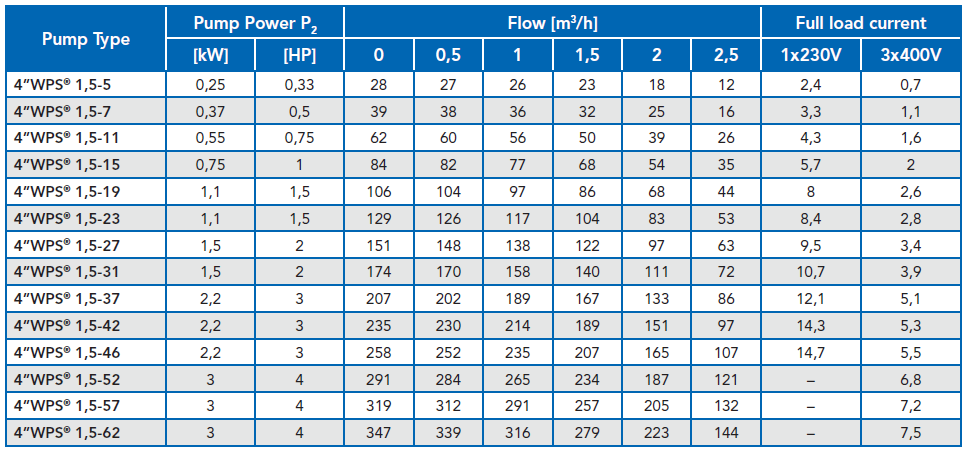

SKU	Product Name	Connection	kW	Ltr./min	Head	Power (hp)	Volt	Price
B1.27.300	4" WPS 1,5-5 - 0,25 kW - 1 x 230V	1.1/2"	0.37	0 - 42	28 - 12	0.5	230	€825.00
B1.27.388	4" WPS 1,5-5 - 0,37 kW - 3 x 400V	1.1/2"	0.37	0 - 42	28 - 12	0.5	400	€835.00
B1.27.302	4" WPS 1,5-7 - 0,37 kW - 1 x 230V	1.1/2"	0.37	0 - 42	36 - 16	0.5	230	€876.00
B1.27.390	4" WPS 1,5-7 - 0,37 kW - 3 x 400V	1.1/2"	0.37	0 - 42	36 - 16	0.5	400	€886.00
B1.27.304	4" WPS 1,5-11 - 0,55 kW - 1 x 230V	1.1/2"	0.55	0 - 42	62 - 26	0.75	230	€1,009.00
B1.27.392	4" WPS 1,5-11 - 0,37 kW - 3 x 400V	1.1/2"	0.55	0 - 42	62 - 26	0.75	400	€1,019.00
B1.27.306	4" WPS 1,5-15 - 0,75 kW - 1 x 230V	1.1/2"	0.75	0 - 42	84 - 35	1	230	€1,116.00
B1.27.394	4" WPS 1,5-15 - 0,75 kW - 3 x 400V	1.1/2"	0.75	0 - 42	84 - 35	1	400	€1,123.00
B1.27.308	4" WPS 1,5-19 - 1,1 kW - 1 x 230V	1.1/2"	1.1	0 - 42	106 - 44	1.5	230	€1,256.00
B1.27.396	4" WPS 1,5-19 - 1,1 kW - 3 x 400V	1.1/2"	1.1	0 - 42	106 - 44	1.5	400	€1,259.00
B1.27.310	4" WPS 1,5-23 - 1,1 kW - 1 x 230V	1.1/2"	1.1	0 - 42	129 - 53	1.5	230	€1,356.00
B1.27.398	4" WPS 1,5-23 - 1,1 kW - 3 x 400V	1.1/2"	1.1	0 - 42	129 - 53	1.5	400	€1,360.00
B1.27.312	4" WPS 1,5-27 - 1,5 kW - 1 x 230V	1.1/2"	1.5	0 - 42	151 - 63	2	230	€1,574.00
B1.27.400	4" WPS 1,5-27 - 1,5 kW - 3 x 400V	1.1/2"	1.5	0 - 42	151 - 63	2	400	€1,540.00
B1.27.314	4" WPS 1,5-31 - 1,5 kW - 1 x 230V	1.1/2"	1.5	0 - 42	174 - 72	2	230	€1,703.00
B1.27.402	4" WPS 1,5-31 - 1,5 kW - 3 x 400V	1.1/2"	1.5	0 - 42	174 - 72	2	400	€1,669.00
B1.27.316	4" WPS 1,5-37 - 2,2 kW - 1 x 230V	1.1/2"	2.2	0 - 42	207 - 86	3	230	€2,297.00
B1.27.404	4" WPS 1,5-37 - 2,2 kW - 3 x 400V	1.1/2"	2.2	0 - 42	207 - 86	3	400	€2,242.00
B1.27.318	4" WPS 1,5-42 - 2,2 kW - 1 x 230V	1.1/2"	2.2	0 - 42	235 - 97	3	230	€2,474.00
B1.27.406	4" WPS 1,5-42 - 2,2 kW - 3 x 400V	1.1/2"	2.2	0 - 42	235 - 97	3	400	€2,419.00
B1.27.320	4" WPS 1,5-46 - 2,2 kW - 1 x 230V	1.1/2"	2.2	0 - 42	258 - 107	3	230	€2,635.00
B1.27.408	4" WPS 1,5-46 - 2,2 kW - 3 x 400V	1.1/2"	2.2	0 - 42	258 - 107	3	400	€2,581.00
B1.27.410	4" WPS 1,5-52 - 3 kW - 3 x 400V	1.1/2"	3	0 - 42	291 - 121	4	400	€3,071.00
B1.27.412	4" WPS 1,5-57 - 3 kW - 3 x 400V	1.1/2"	3	0 - 42	319 - 132	4	400	€3,200.00
B1.27.414	4" WPS 1,5-62 - 3 kW - 3 x 400V	1.1/2"	3	0 - 42	347 - 144	4	400	€3,247.00

More information

Well pump part assembled with Well Pumps motor. The well pump part and impellers are made entirely of stainless steel AISI304. The pump can pump up to a maximum of 150 g/m³. WPS motors are water-filled and suitable for use with frequency control. Supplied with 1.75m cable as standard. Monophase motors come with capacitor box. Optionally, the pump can be supplied in stainless steel AISI 316. Pump equipped with Franklin motor on request.
